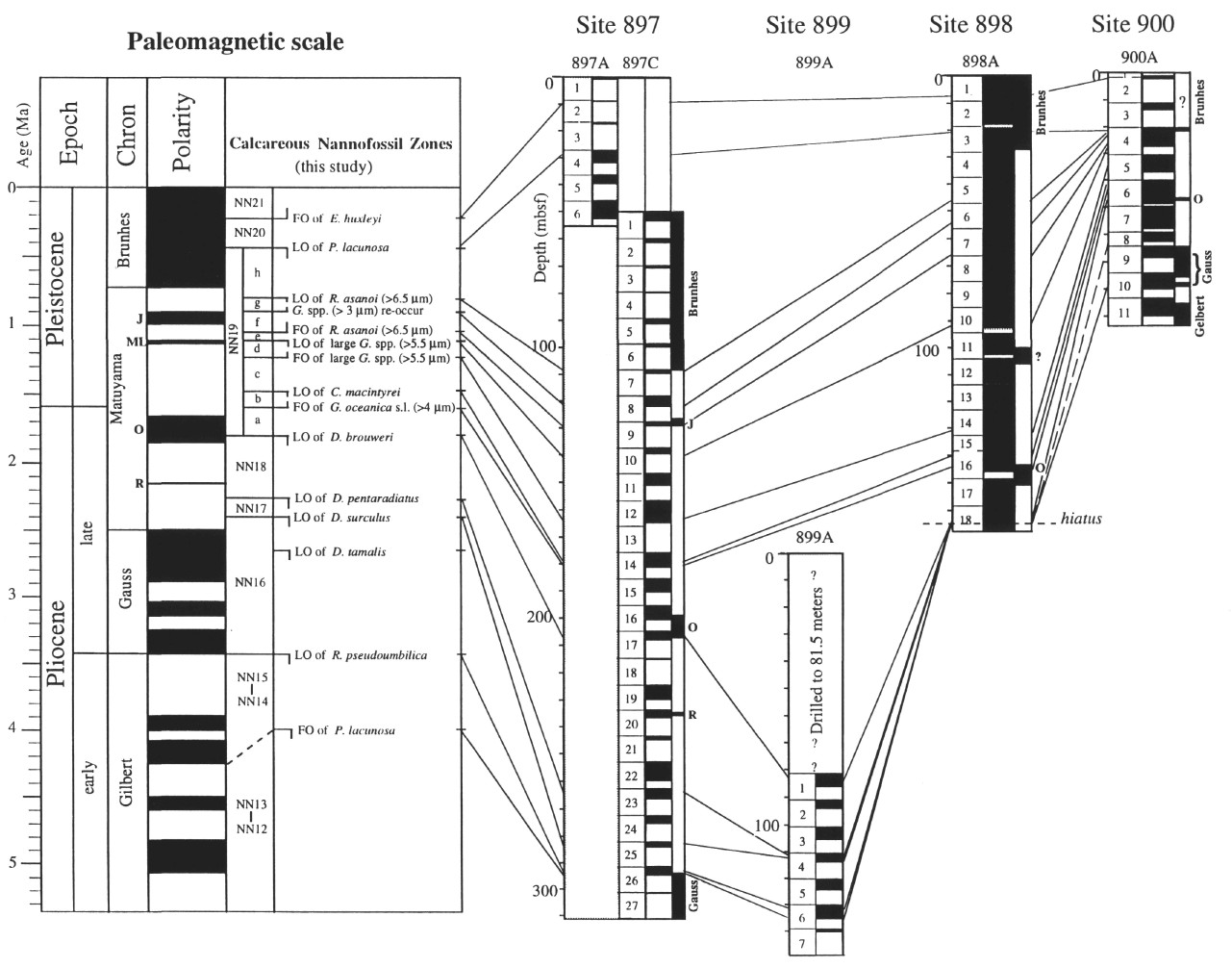

Figure 2. Correlation of Pliocene-Pleistocene nannofossil biostratigraphy with magnetostratigraphy at Leg 149 Sites 897, 898, 899, and 900. The paleomagnetic polarity is shown on the right side, core recovery in the middle, and core number on the left for each site.
