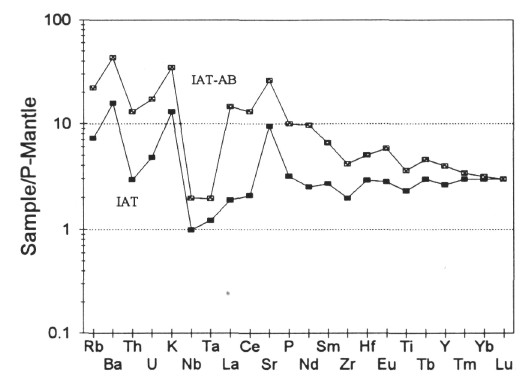

Figure 11. A spider diagram with spidergram patterns for IAT and IAT-AB using the same elemental sequence as Figure 10 and normalizing values from Sun (1980) and others. The irregular shape of the island-arc tholeiites stands in marked contrast to the relatively smooth patterns of the spidergrams in Figure 10.
