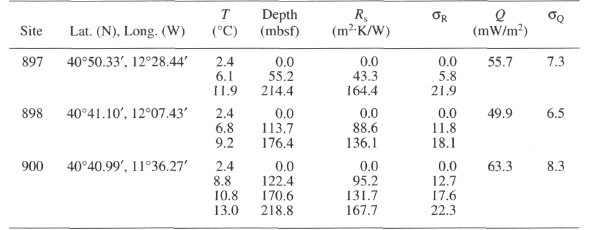

Notes: T (temperatures) for Sites 897 and 900 have been offset by -1.2° and -1.4°C, respectively. Rs (
R) = (1/b) ln{(ko + bz) / ko}, where ko = 1.26 (0.17)
W/m·K; b = 0.00041 (0.00005)
W/m2·K. Q (heat flow) (Q)
is determined from linear fit to T vs. Rs (R).
