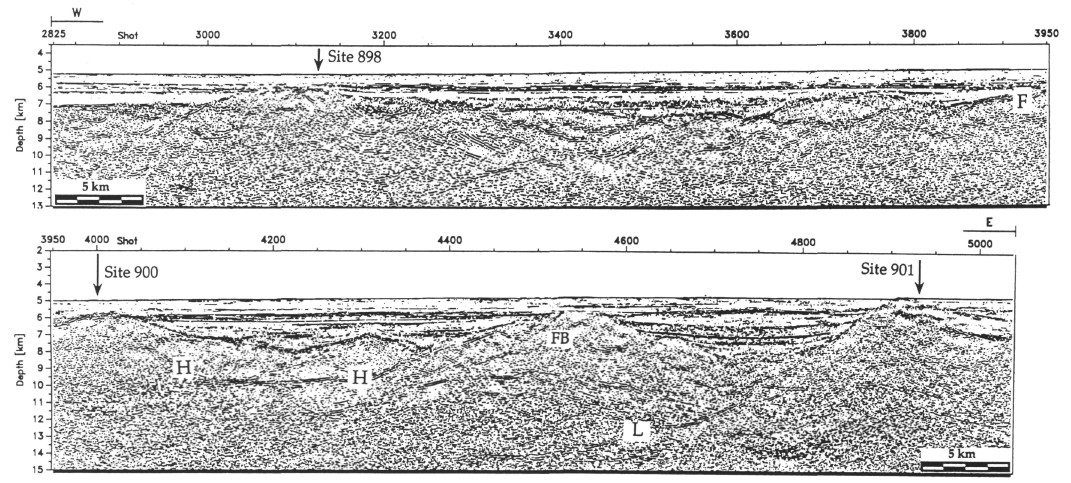

Figure 8. Depth-migrated section of profile LG-12 between Sites 898 and 901 (Krawczyk et al., this volume; 50-m shot spacing; no vertical exaggeration). Significant fault structures, H, L, and F are labeled. L bounds the Site 901 basement high on the west. Krawczyk et al. (this volume) interpret H to be a low-angle detachment fault that was active late in the rifting process.

Figure 8. Depth-migrated section of profile LG-12 between Sites 898 and 901 (Krawczyk et al., this volume; 50-m shot spacing; no vertical exaggeration). Significant fault structures, H, L, and F are labeled. L bounds the Site 901 basement high on the west. Krawczyk et al. (this volume) interpret H to be a low-angle detachment fault that was active late in the rifting process.
