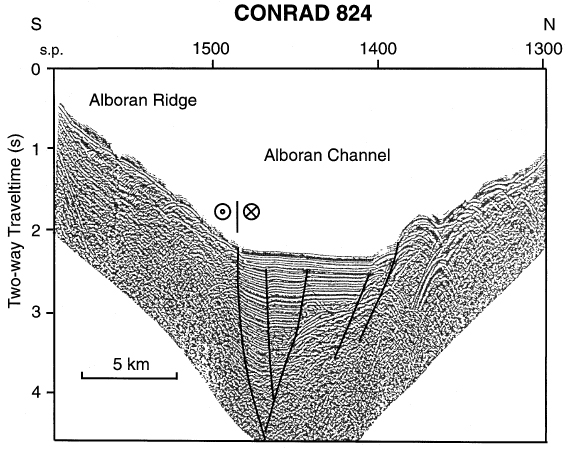

Figure 10. Interpretation of part of Conrad 824 profile across the Alboran Channel showing a strike-slip master fault at the base of the northern slope of the Alboran Ridge. s.p. = shotpoints. Location in Figure 2.
