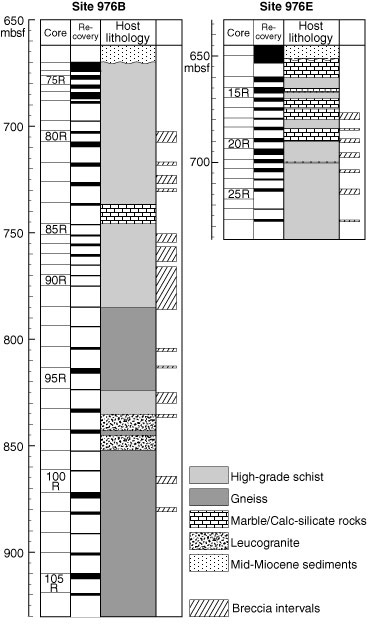

Figure 5. Basement sections in Holes 976B and 976E showing recovery and sampled metamorphic rock types (from Shipboard Scientific Party, 1996b). Main intervals of brittle deformation (breccia and fault-gouge intervals) deduced from core description and logging characteristics are indicated by shaded bands on the right-hand side of each lithologic column (from Comas and Soto, Chap. 25, this volume).

Figure 5. Basement sections in Holes 976B and 976E showing recovery and sampled metamorphic rock types (from Shipboard Scientific Party, 1996b). Main intervals of brittle deformation (breccia and fault-gouge intervals) deduced from core description and logging characteristics are indicated by shaded bands on the right-hand side of each lithologic column (from Comas and Soto, Chap. 25, this volume).
