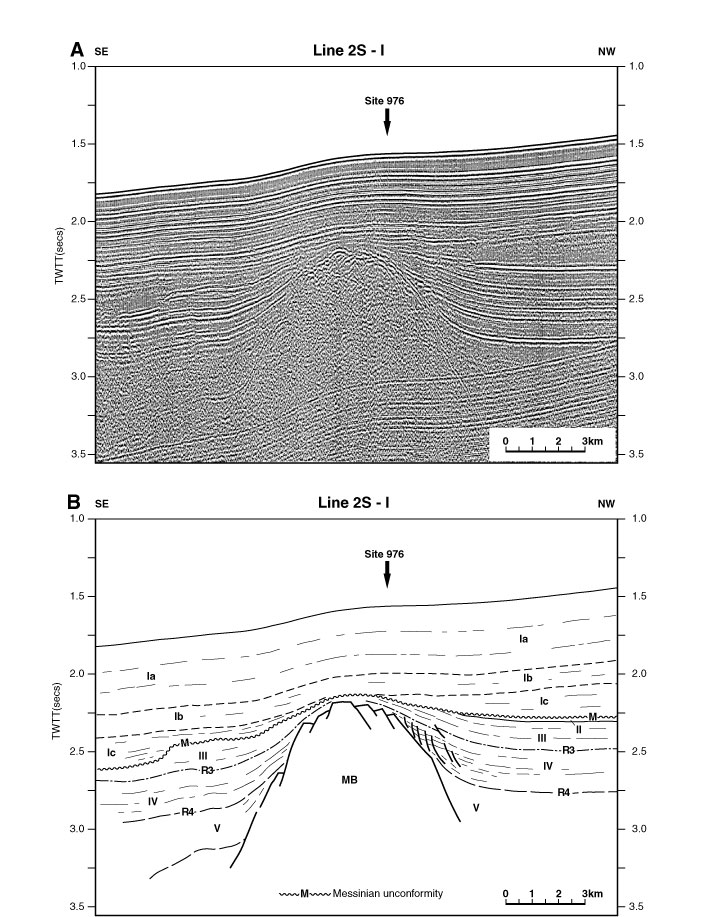

Figure 7. JOIDES Resolution seismic Line 2S-I (single channel) across Site 976. A. Original profile. B. Draw-line interpretation of Line 2S-I based on Site 976 data (modified from Shipboard Scientific Party, 1996b). Reflectors and seismic units as in Figures 3 and 15. MB = Metamorphic basement. Location of seismic line is shown in Figure 2. See text explanation.

Figure 7. JOIDES Resolution seismic Line 2S-I (single channel) across Site 976. A. Original profile. B. Draw-line interpretation of Line 2S-I based on Site 976 data (modified from Shipboard Scientific Party, 1996b). Reflectors and seismic units as in Figure 3 and Figure 15. MB = Metamorphic basement. Location of seismic line is shown in Figure 2. See text explanation.
