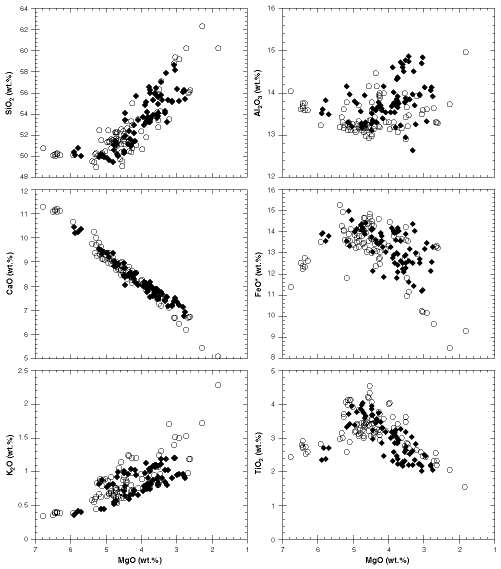

Figure 4. MgO variation diagrams showing the major-element compositions (SiO₂, Al₂O₃, CaO, FeO*, K₂O, and TiO₂) of mafic and intermediate glass particles recovered at Sites 982 (open circles) and 985 (solid diamonds). All analyses were normalized to a volatile-free total of 100%.
