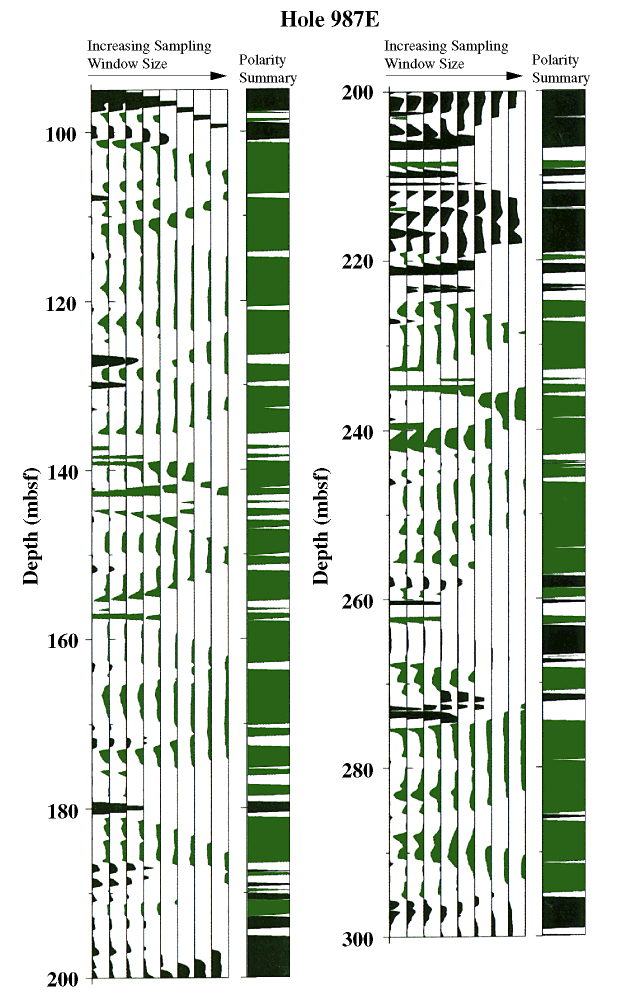

Figure 2. Polarity stratigraphy for Hole 987E from 90 to 300 mbsf. Data collected below this interval were severely disturbed by debris flows and are not shown. Normal polarity intervals are shown in black, reverse polarity is gray, and undetermined sections are white. Eight sampling windows ranging from 1.5- to 12.8-m lengths were used to create polarity synthesis for this hole.
