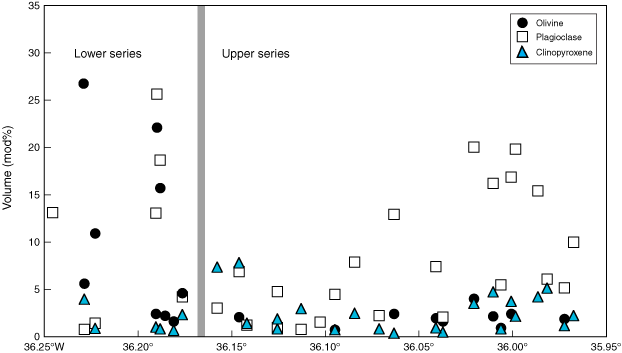

Figure F13. Modes of plagioclase, clinopyroxene, and olivine phenocrysts in lavas from Transect EG65. The high modal abundances of olivine and plagioclase are used to define a lower and an upper series, respectively. The boundary is placed between Sites SEG45 and SEG51 at ~36°17´W.

Figure F13. Modes of plagioclase, clinopyroxene, and olivine phenocrysts in lavas from Transect EG65. The high modal abundances of olivine and plagioclase are used to define a lower and an upper series, respectively. The boundary is placed between Sites SEG45 and SEG51 at ~36°17´W.
