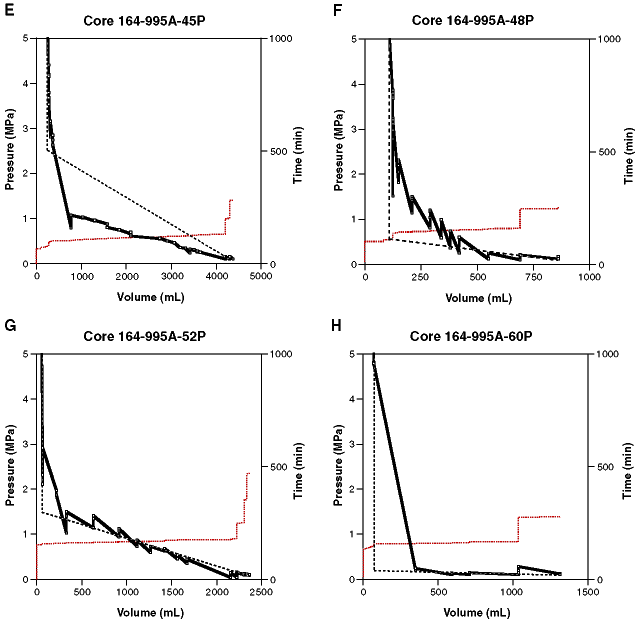

Figure 4 (continued). E. Core 164-995A-45P released 4200 mL of gas (~4025 mL of CH₄) at 0ºC over 67 min, and 4370 mL of gas (~4195 mL of CH₄) at less than ~15ºC over 216 min. F. Core 164-995A-48P released 815 mL of gas (~690 mL of CH₄) at 0ºC over 67 min, and 985 mL of gas (~860 mL of CH₄) at less than ~15ºC over 156 min. An unknown volume of gas was lost from this core at a pressure between 1.52 and 3.69 MPa. Pressures on the synthetic volume-pressure plot for F are too low for a given volume. G. Core 164-995A-52P released 2225 mL of gas (~2160 mL of CH₄) at 0ºC over 31 min, and 2365 mL of gas (~2300 mL of CH₄) at less than ~15ºC over 318 min. H. Core 164-995A-60P released 1035 mL of gas (~965 mL of CH₄) at 0ºC over 44 min, and 1310 mL of gas (~1260 mL of CH₄) at less than ~15ºC over a total time of 144 min.
