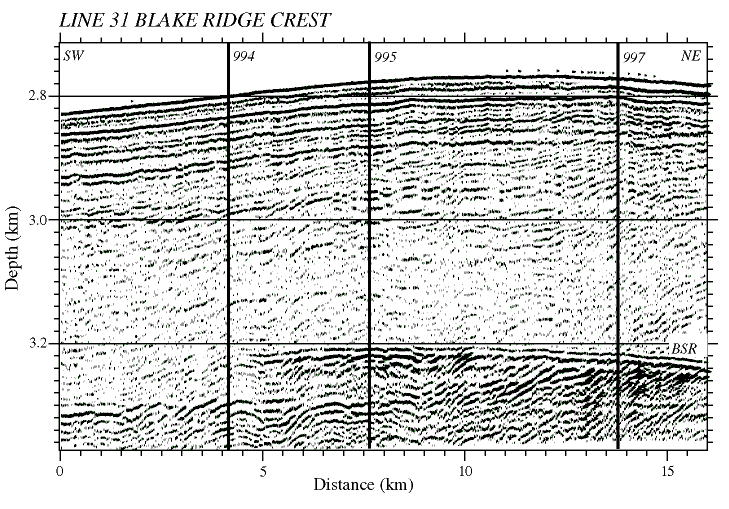

Figure 1. Line 31 (from Katzman et al., 1994) is shown here unmigrated and converted to depth using interpolated and extrapolated velocities determined from the VSPs at Sites 994, 995, and 997. The section is displayed to accentuate the fine-scale faulting (discontinuous reflections) throughout the gas hydrate-stability zone. The high-amplitude events below 3300 m correspond to gas-charged sediments at Site 994, and continue below the BSR at Sites 995 and 997. The change in depth of the top of gas may be due to a lower methane flux at Site 994 than at Sites 995 and 997 (Xu and Ruppel, 1999).
