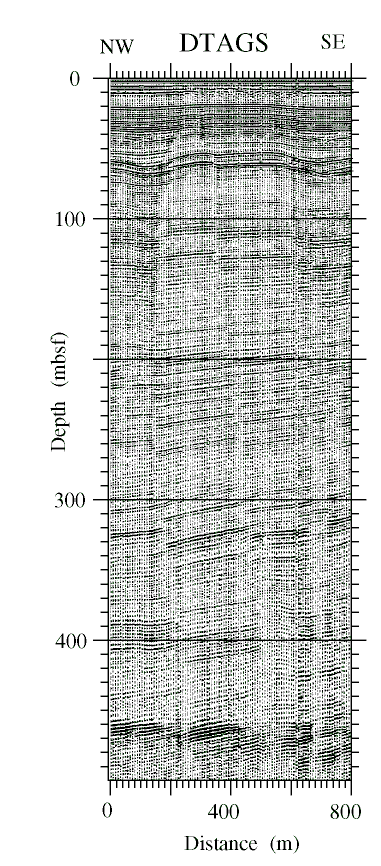

Figure 5. Deep-towed, high-frequency vertical array data clearly show not only the position, but also the displacement on faults that penetrate the BSR. This is a small sample of a larger data set that reveals fault spacing at tens to hundreds of meters (from Wood and Gettrust, 1998).
