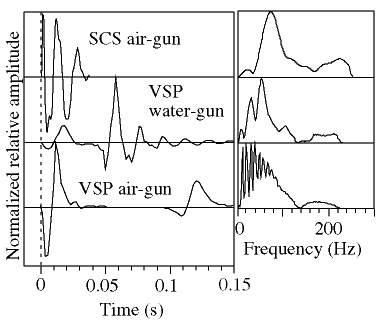

Figure 2. The three source functions of the data used in the attenuation analysis and their corresponding amplitude spectra are shown. The VSP air-gun, and water-gun signatures were taken from direct water-wave arrivals at a monitor hydrophone. The SCS air-gun signature was inverted from the seismic data using the technique of W.T. Wood (unpubl. data). None of the amplitudes are expressed as log ratio values.
