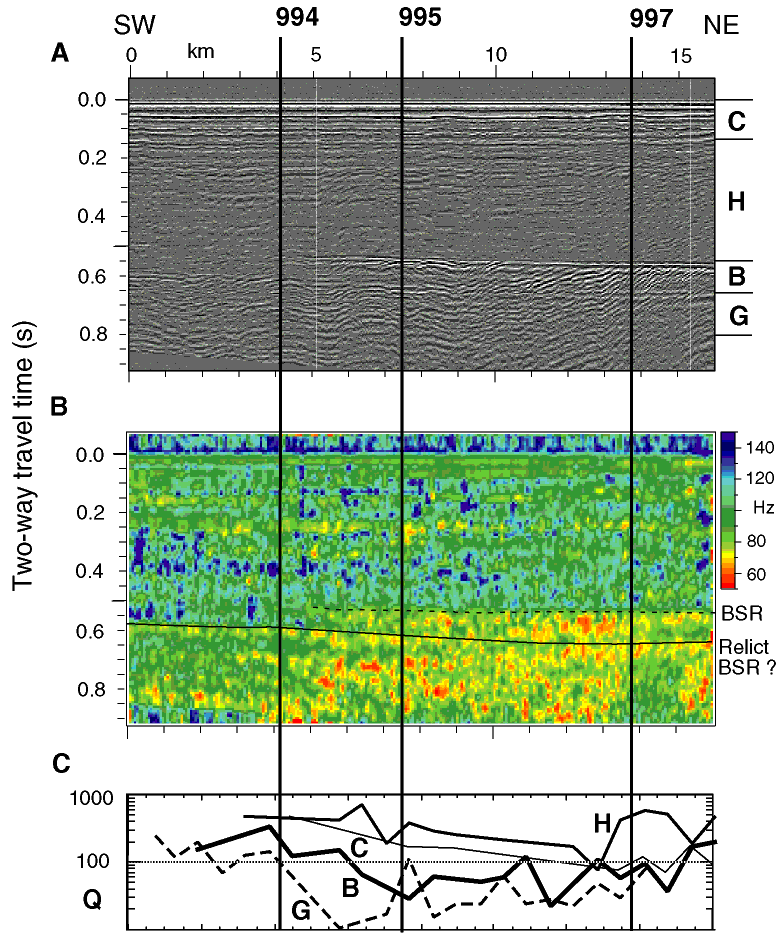

Figure 3. A. Line 31, which passes over the crest of the Blake Ridge, was time shifted to make the water-bottom horizontal. B. A sliding spectrum applied to this line reveals a sharp drop in frequency at the BSR and another gas-charged layer (possibly a relict BSR), each of which represents the top of gas. C. Inversion for quality factor Q shows the highest values for layer H where the hydrate was found.
