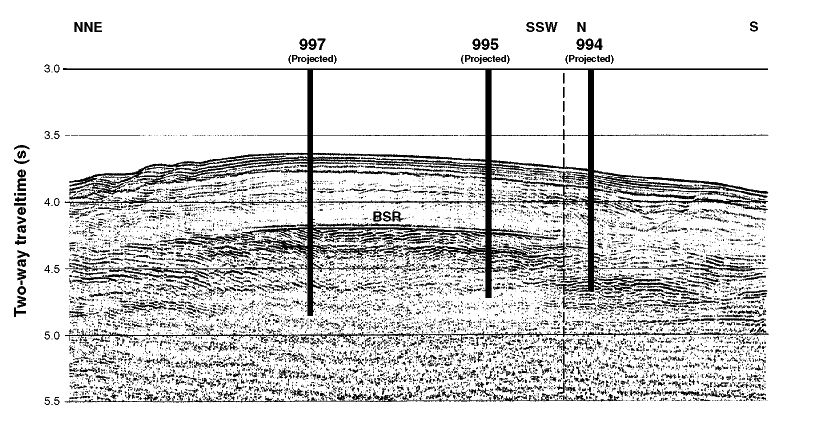

Figure 2. Seismic profiles used for tomographic inversion of traveltimes. Thick solid lines show the projected locations of the Sites 994, 995, and 997. Thin vertical dashed line indicates the joining point of the two multichannel seismic lines.
