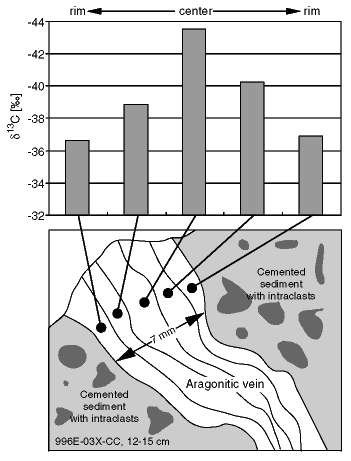

Figure 10. Carbon isotopic composition through an aragonite cemented vein-like void filling within one of the carbonate nodules (Sample 164-996E-3X-CC, 12-15 cm). Diameter of the vein is ~7 mm. The symmetric trend towards more ¹³C-depleted carbon isotope values from the rim to the center of the vein probably reflects a compositional change of the carbon pool.
