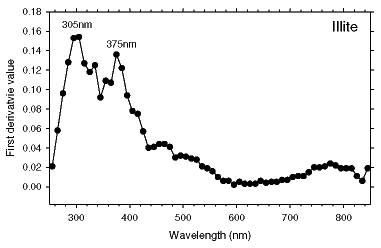

Figure 13. First-derivative curve for illite. This sample is API#35 from Fifthian, IL and was analyzed without the addition of any other material. The analytical wavelength range for the Minolta Spectrophotometer is 400-700 nm and, for the Perkin-Elmer Lambda 6 spectrophotometer, 250-850 nm.
