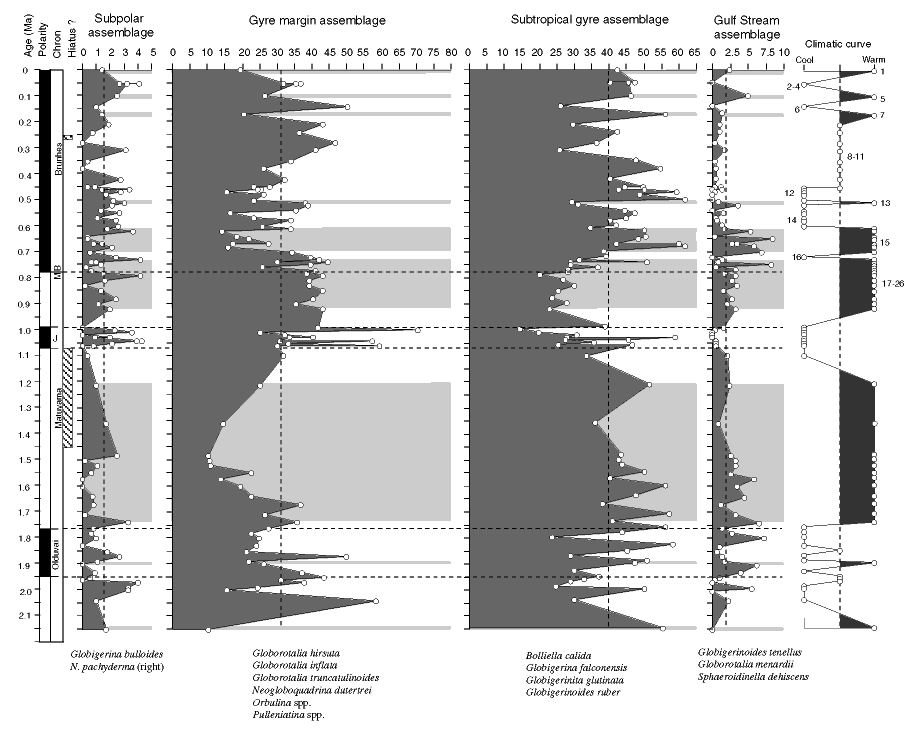

Figure 10. Time series of downcore variations in percent relative abundance of warm-water, subtropical gyre, gyre margin, and subpolar assemblages. Each assemblage is the cumulative total abundance of the species listed below each column.
