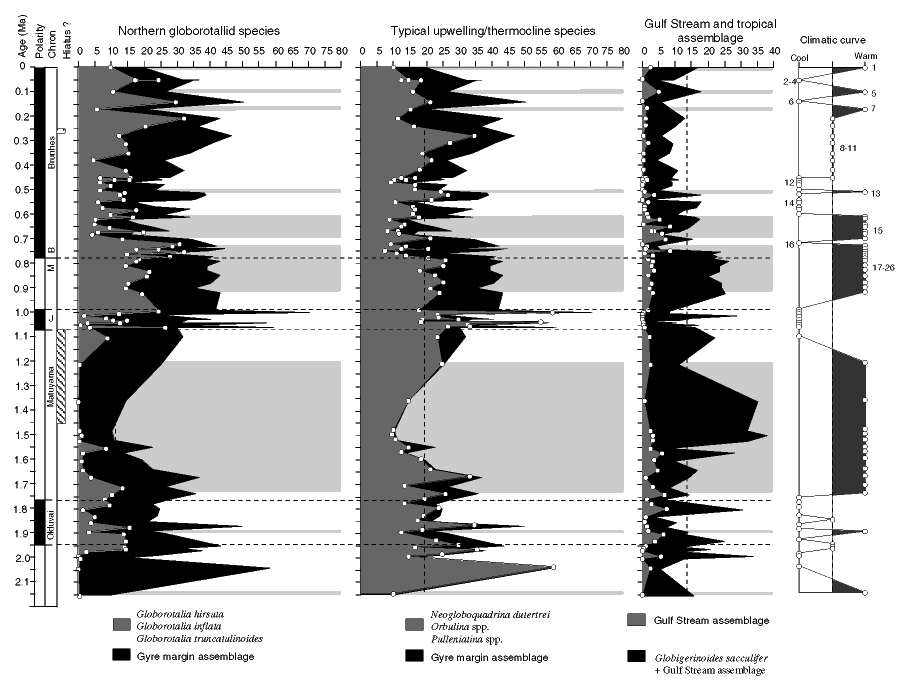

Figure 11. Time series of downcore variations in percent relative abundance of northern globorotaliid species and upwelling/thermocline species in the gyre margin assemblage, and possible warm-water species (a Gulf Stream assemblage and G. sacculifer). Each species group consists of the cumulative total abundance of the taxa listed below each column.
