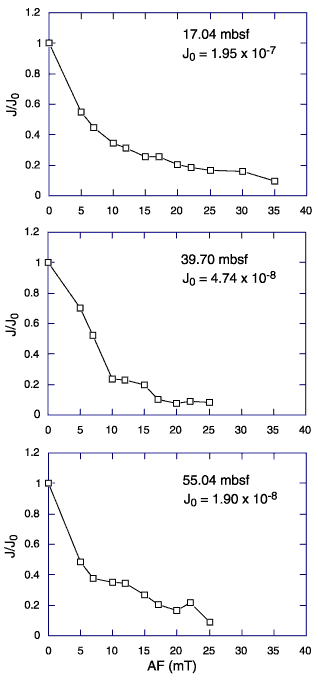

Figure 4. Typical J/J0 plots of carbonate samples from Hole 1006A. Samples responded to AF demagnetization as the remanence decayed quickly at fields of only 10-15 mT. Sample number is depth in core (in mbsf). J0 intensity is in Am2/kg.

Figure 4. Typical J/J₀ plots of carbonate samples from Hole 1006A. Samples responded to AF demagnetization as the remanence decayed quickly at fields of only 10-15 mT. Sample number is depth in core (in mbsf). J₀ intensity is in Am²/kg.
