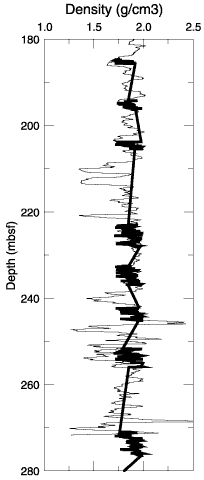

Figure 5. Comparison of downhole density log (thin line) with shipboard GRAPE density measurements (thick line). For depth intervals of no core recovery, interpolation is used for plotting purposes. These two density measurements agree with each other fairly well where hole conditions are favorable.
