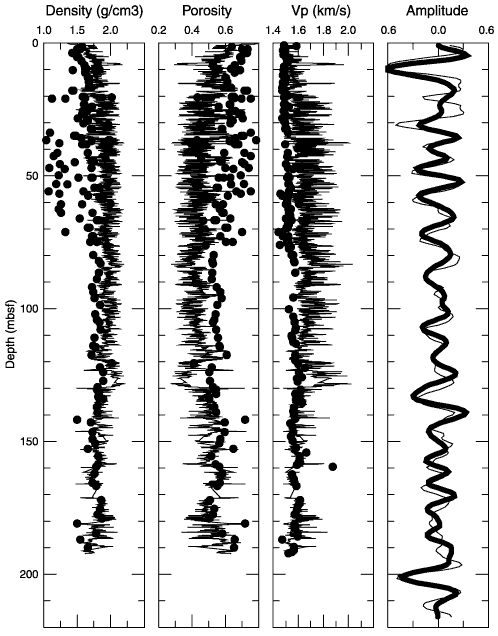

Figure 6. Comparison of field seismic data with synthetic seismogram generated using pseudoporosity and pseudovelocity profiles, Site 1023. GRAPE density is plotted against discrete IP density measurements. Pseudoporosity is vs. discrete IP porosity, and pseudovelocity against the discrete DSV data.
