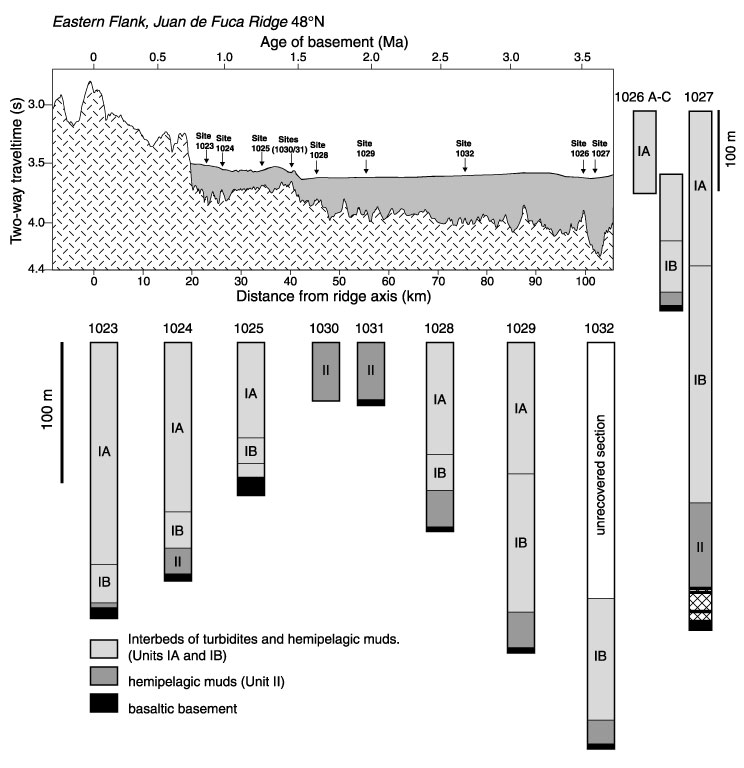

Figure 1. Basement topography and sedimentary cover of the eastern flank of the Juan de Fuca Ridge and synthetic lithologic sections of the drilled Sites 1023-1032.

Figure 1. Basement topography and sedimentary cover of the eastern flank of the Juan de Fuca Ridge and synthetic lithologic sections of the drilled Sites 1023-1032.
