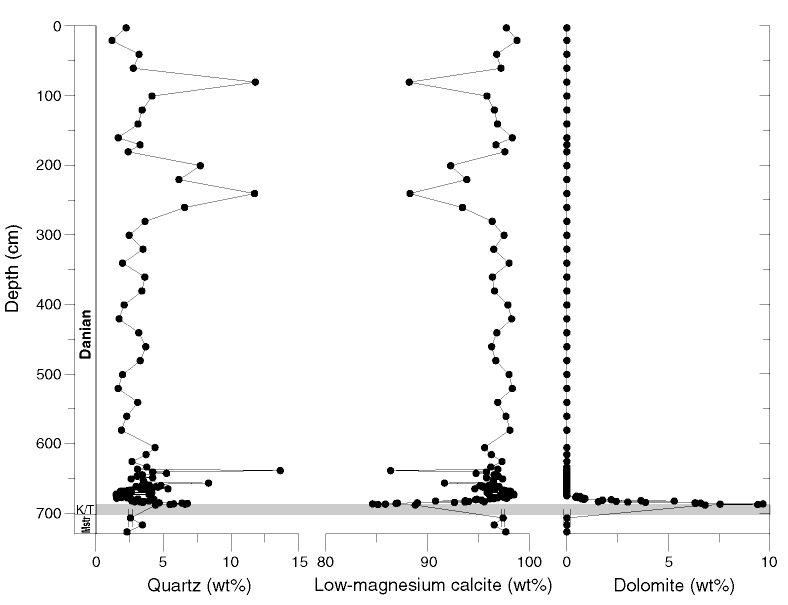

Figure F1. Plot of mineralogy of Core 171B-1049C-8X. The shaded area = the spherule layer, which overlies the K/T boundary (Shipboard Scientific Party, 1998). In the age scale, Mstr = the latest Maastrichtian.
