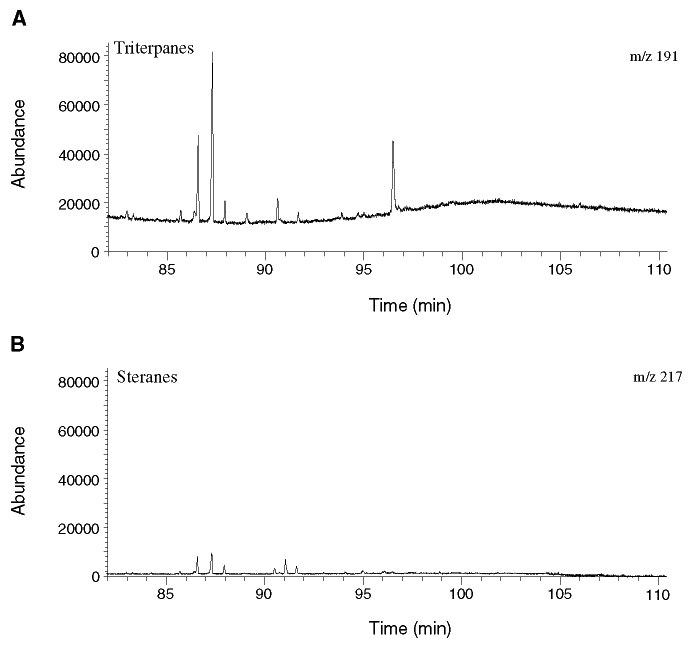

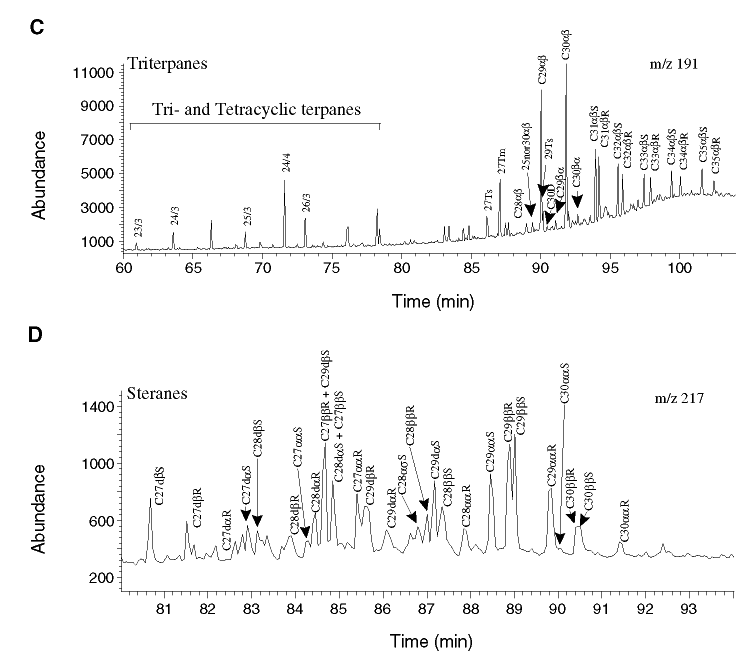

Figure F2. Comparison of mass chromatograms for (A) m/z 191 triterpanes, (B) m/z 217 steranes in a sample from Site 1063 compared to a typical distribution for (C) triterpanes and (D) Steranes in an oil from the JV Armaan Well, Caspian Sea, Kazakhstan.
