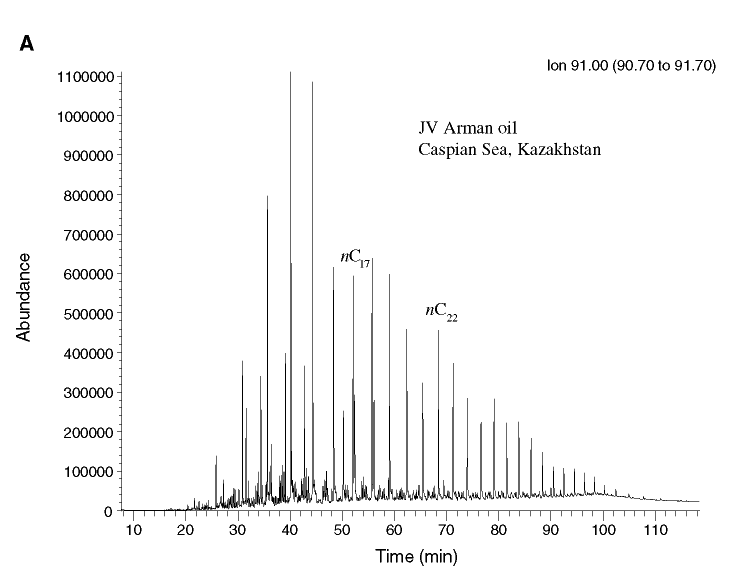

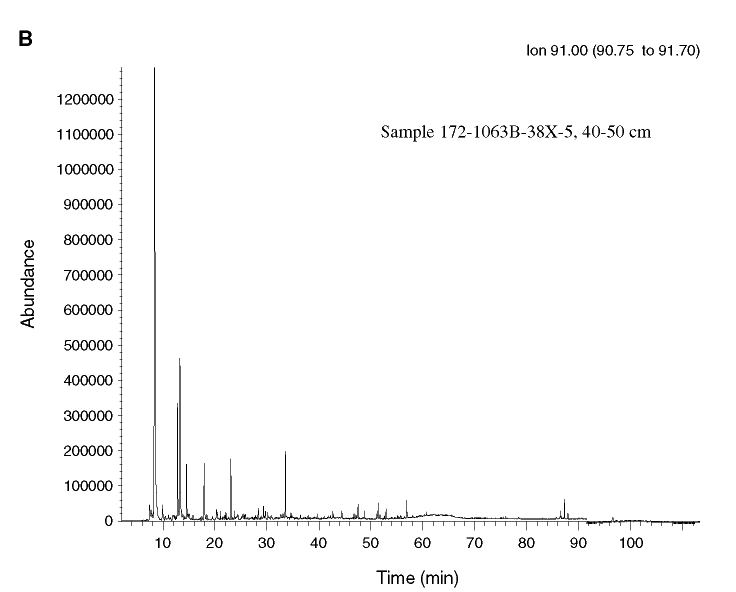

Figure F3. Comparison of mass chromatograms (m/z 91) for typical petroleum hydrocarbons from (A) a Kazakhstan oil well and (B) a sample supplied from Site 1063. The Site 1063 sample does not show the typical distributions of n-alkanes commonly associated with a mature petroleum origin.
