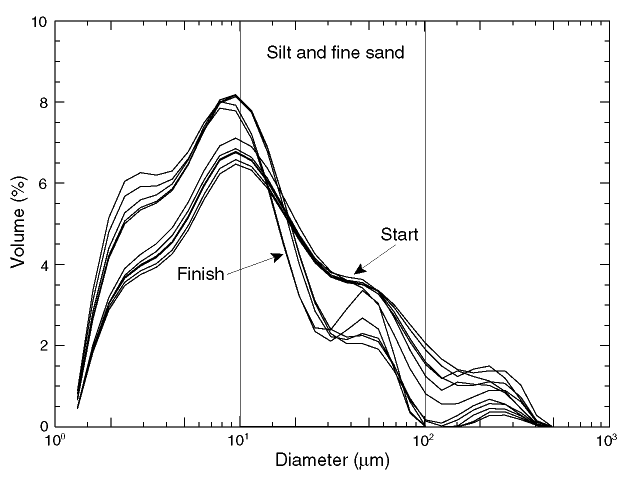

Figure F3. Repeated particle size analyses of bulk Sample 172-1063D-4H-4, 83-85 cm, during increasing sonication duration (arrows). Note the decrease in volume percent in the 10- to 200-µm size fraction. The sample was initially disaggregated by gentle agitation and then by ultrasonic means. The change in size probably reflects destruction of biogenic silica grains during sonication.
