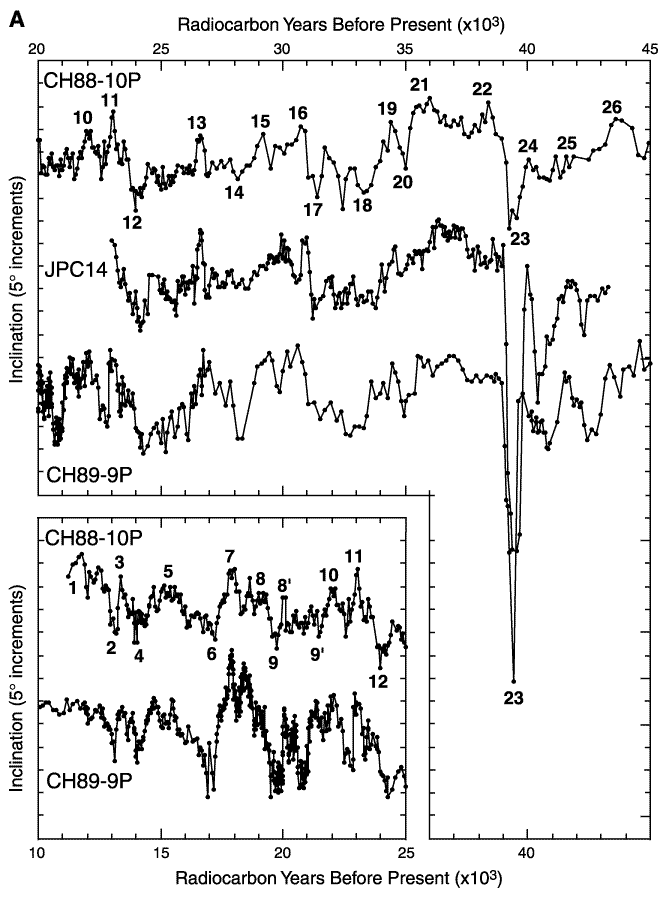

Figure F4. A. Discrete sample inclination measurements (Lund, 1993; Lund et al., in press) from three piston cores from the Blake Outer Ridge (CH88-10P, JPC14) and Bermuda Rise (CH89-9P). Selected inclination and declination features are numbered for comparison with similar features in Figures F2 and F3. The chronology for these cores is based on radiocarbon dates from Keigwin and Jones (1994) that were transferred to these cores based on correlations of magnetic susceptibility and calcium carbonate variability. B. Declination measurements from Blake Outer Ridge and Bermuda Rise.
