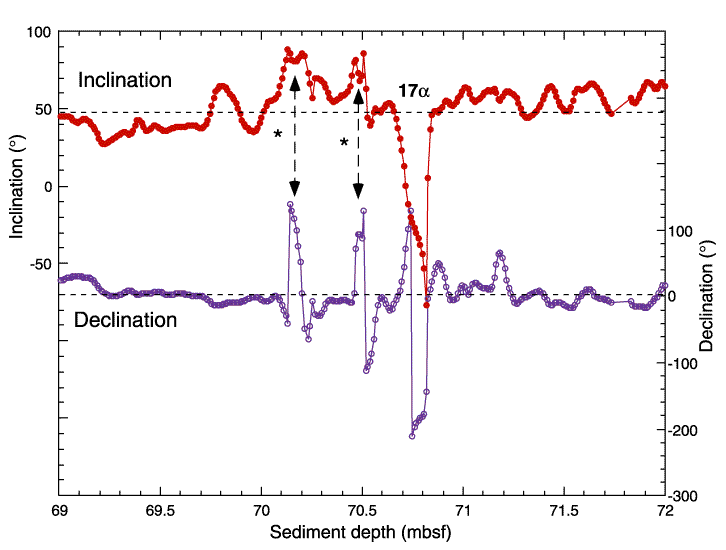

Figure F7.
U-channel inclination and declination results (40-mT AF demagnetization) for the
interval of excursion 17
in Hole 1062E. The starred horizons are representative of several intervals of
anomalously high positive inclinations discussed more fully in "Excursions
during the Brunhes Chron."
