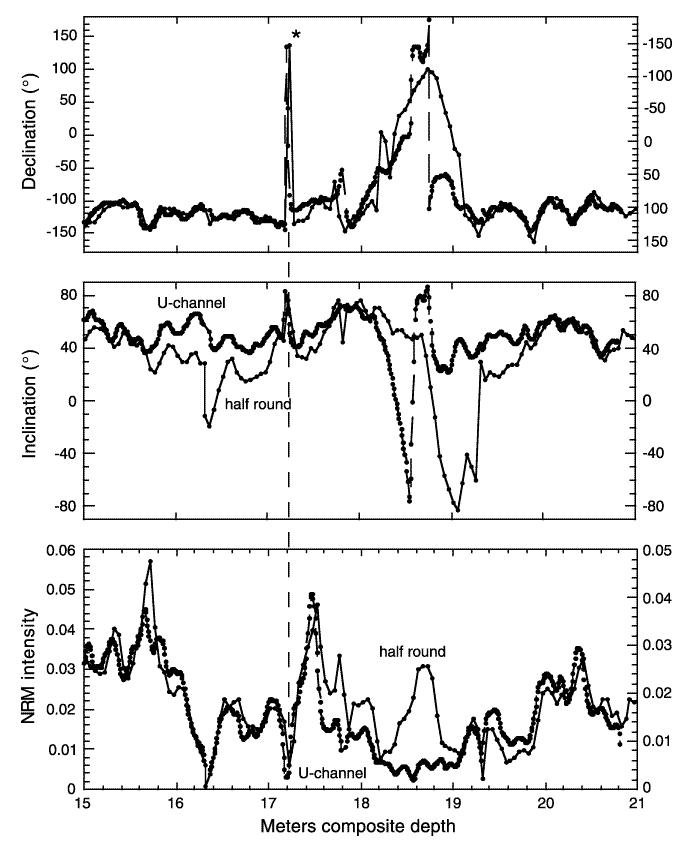

Figure F7.
Comparison of shipboard (half round) and U-channel
long-core paleomagnetic measurements (after 20 -mT AF demagnetization) for an
interval containing excursions 3
and 3
in Hole 1063C. See "U-Channel Paleomagnetic Measurements of
Excursions 3
and 3"
for more detailed discussion.
