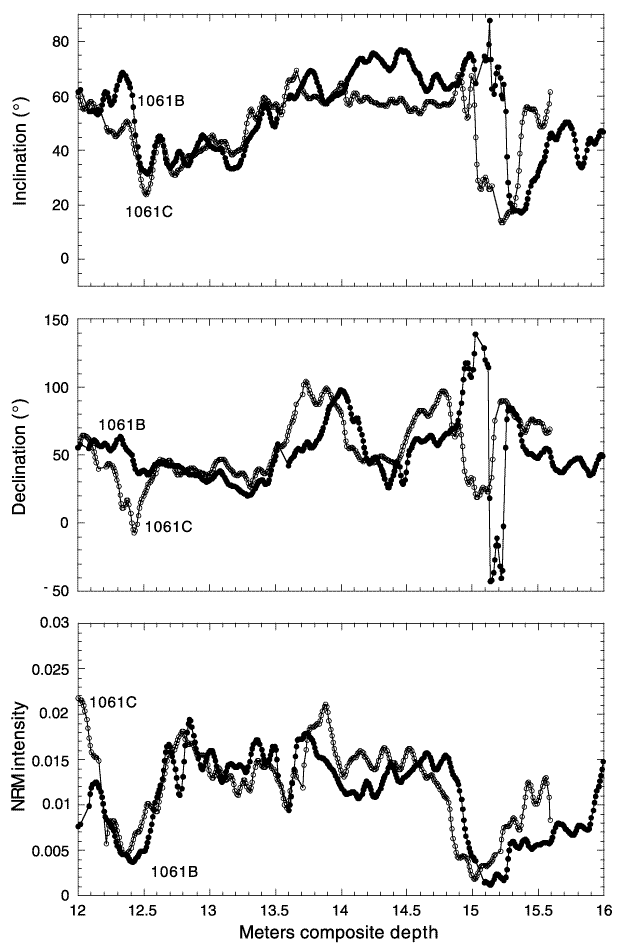

Figure F8.
A comparison of excursion 3
as recorded in Holes 1061B and 1061C. The depth scale is provided by magnetic
susceptibility correlations between all the holes at Site 1061. There are still
~20 cm offsets between equivalent individual paleomagnetic features at the two
holes due to more subtle variations in sediment accumulation at the two holes.
