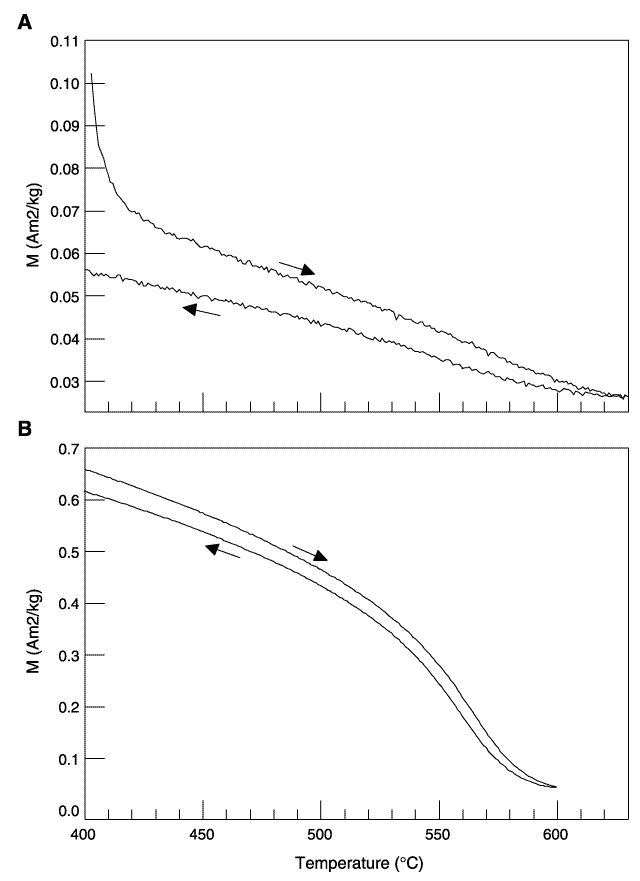

Figure F8. Typical thermomagnetic curves for Leg 173 peridotites. A. Altered peridotite sample (173-1070A-8R-1, 107-109 cm) from Site 1070. B. Fresher peridotite sample (173-1070A-11R-1, 81-83 cm) from Site 1070.
