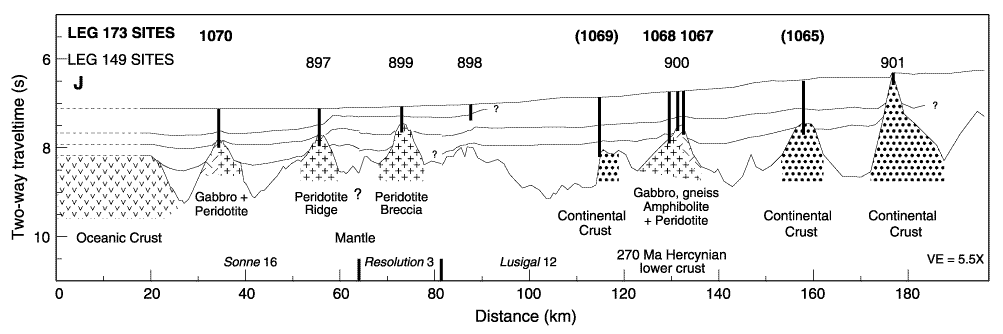

Figure F2. Composite west to east (left to right) cross section through the Legs 149 and 173 drill sites. Site 900 from Leg 149 and Sites 1067 and 1068 from Leg 173 are all located on the same structural high. Site 899 from Leg 149 is located ~60 km to the west of these sites. From Whitmarsh, Beslier, Wallace, et al. (1998).
