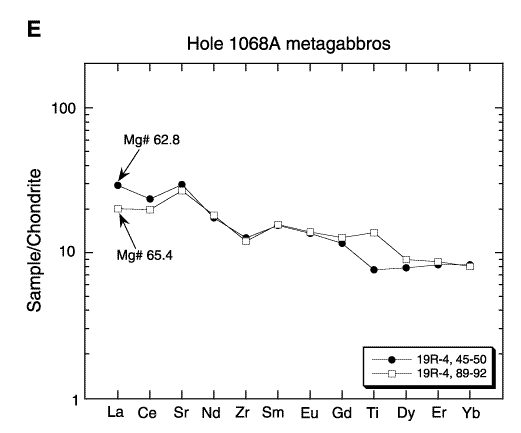

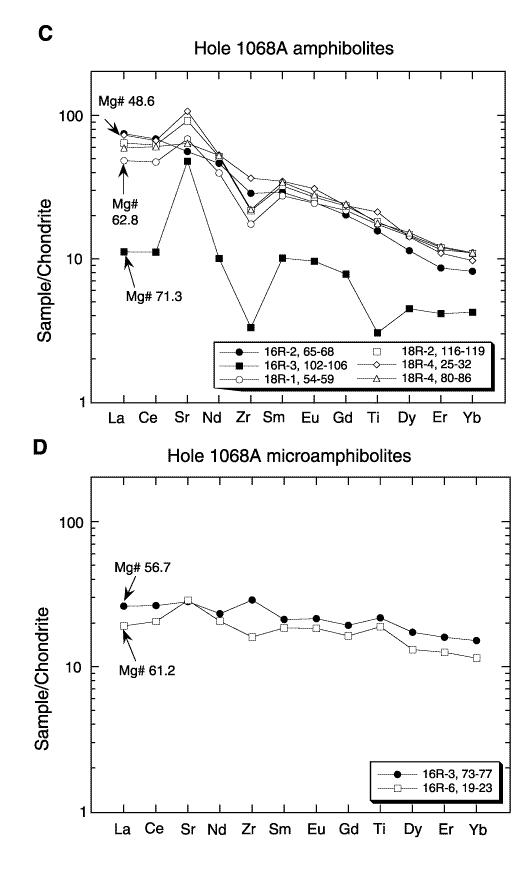

Figure F6. Extended rare earth element plots with Sr, Zr, and Ti. All of the samples are light rare earth element-enriched and have negative to slightly positive Eu/Eu* anomalies. Also shown are Mg numbers for the samples where the more primitive samples have lower REE enrichments and higher Mg numbers and more evolved samples have higher REE enrichments and lower Mg-numbers. A. Site 1067 amphibolites (Cores 173-1067A-14R through 20R). B. Site 1067 amphibolites (Cores 173-1067A-22R through 23R). C. Site 1068 amphibolites. D. Site 1068 microamphibolites. E. Site 1068 metagabbros.
