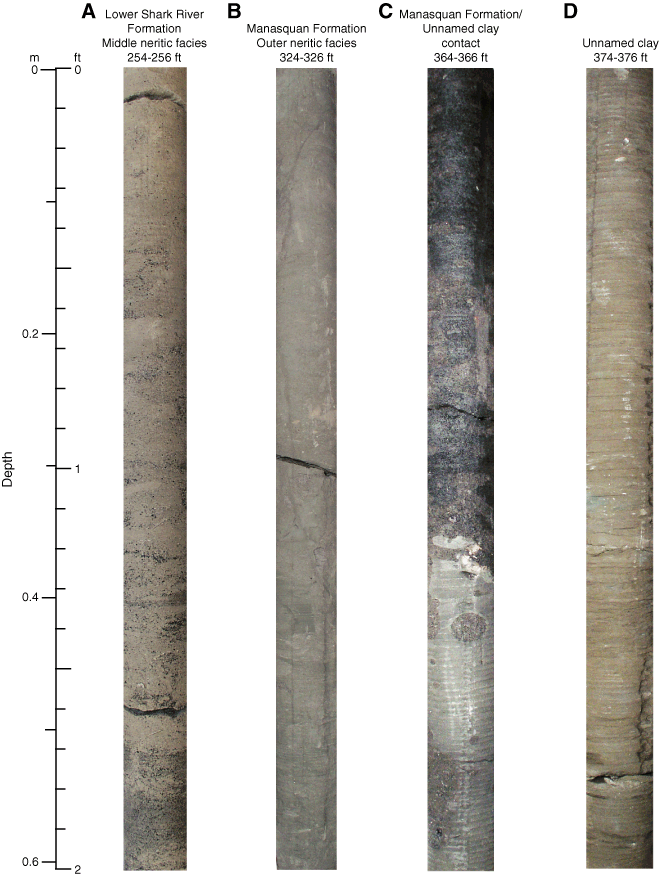

Figure F11. A. Middle neritic slightly glauconitic clay from the lower Shark River Formation (254–256 ft; 77.42–78.03 m). B. Outer neritic clay from the Manasquan Formation (324–326 ft; 98.76–99.36 m). C. Burrowed contact between the Manasquan Formation (glauconitic clay) above and the unnamed clay below (364–366 ft; 110.95–111.56 m). D. Middle–outer neritic clay from the unnamed clay (374–376 ft; 14.00

Figure F11. A. Middle neritic slightly glauconitic clay from the lower Shark River Formation (254–256 ft; 77.42–78.03 m). B. Outer neritic clay from the Manasquan Formation (324–326 ft; 98.76–99.36 m). C. Burrowed contact between the Manasquan Formation (glauconitic clay) above and the unnamed clay below (364–366 ft; 110.95–111.56 m). D. Middle–outer neritic clay from the unnamed clay (374–376 ft; 14.00–114.60 m).
