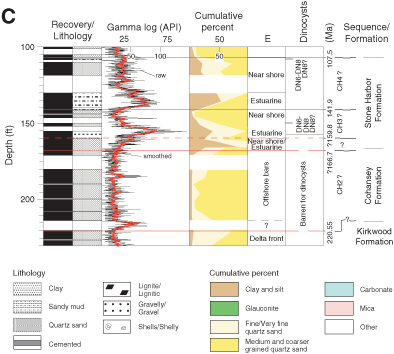

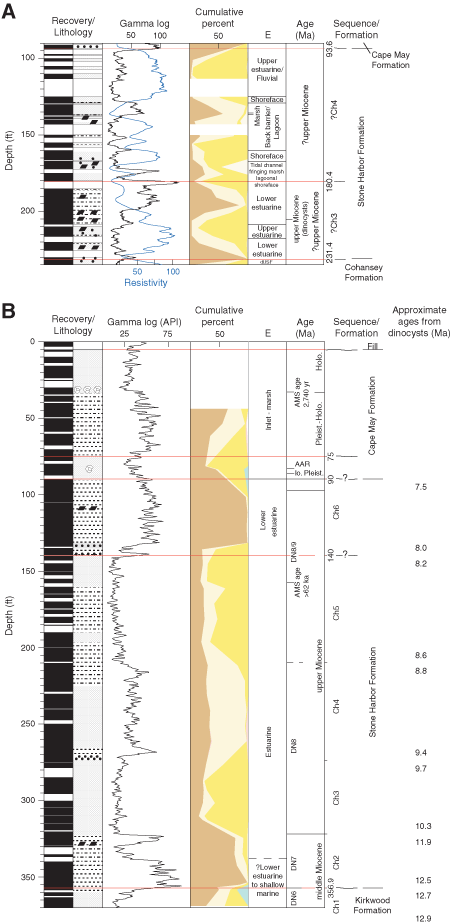

Figure AF1. Summary stratigraphic sections for the Stone Harbor Formation. Sequences defined by de Verteuil (1997). A. Cape May Zoo (ODP Leg 174AX; stratotype), dUSF = distal upper shoreface. B. Cape May (ODP Leg 150X; costratotype), AMS = accelerator mass spectrometer radiocarbon date, AAR = amino acid racemization. C. Ocean View coreholes.
