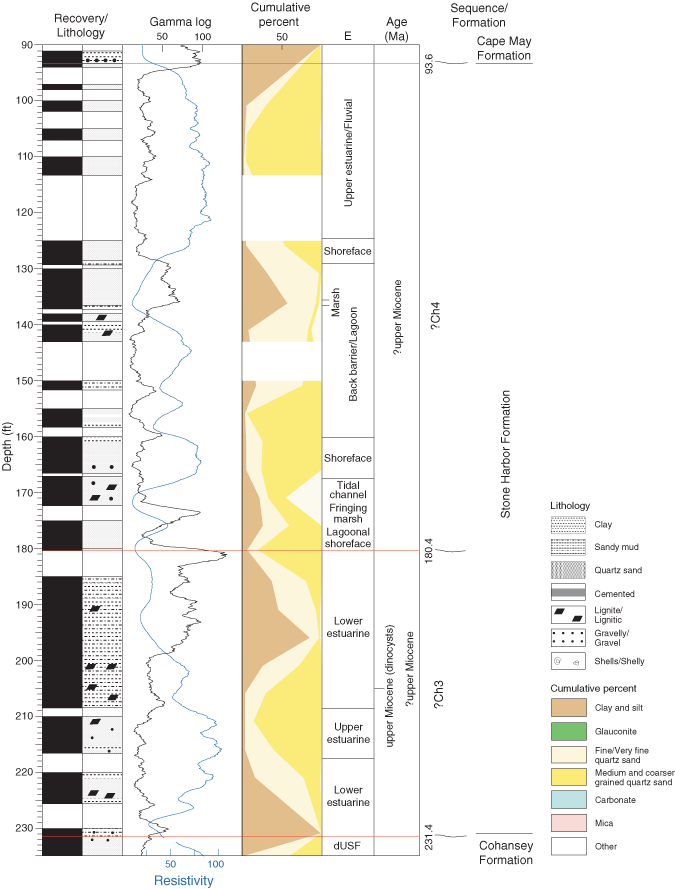

Figure F4. Stratigraphic section summarizing core recovery, lithology, gamma ray and resistivity log signatures, age, and environments for the Stone Harbor Formation (proposed; ?upper Miocene) in Cape May Zoo corehole. Sequences defined by de Verteuil (1997). dUSF = distal upper shoreface, E = environment.
