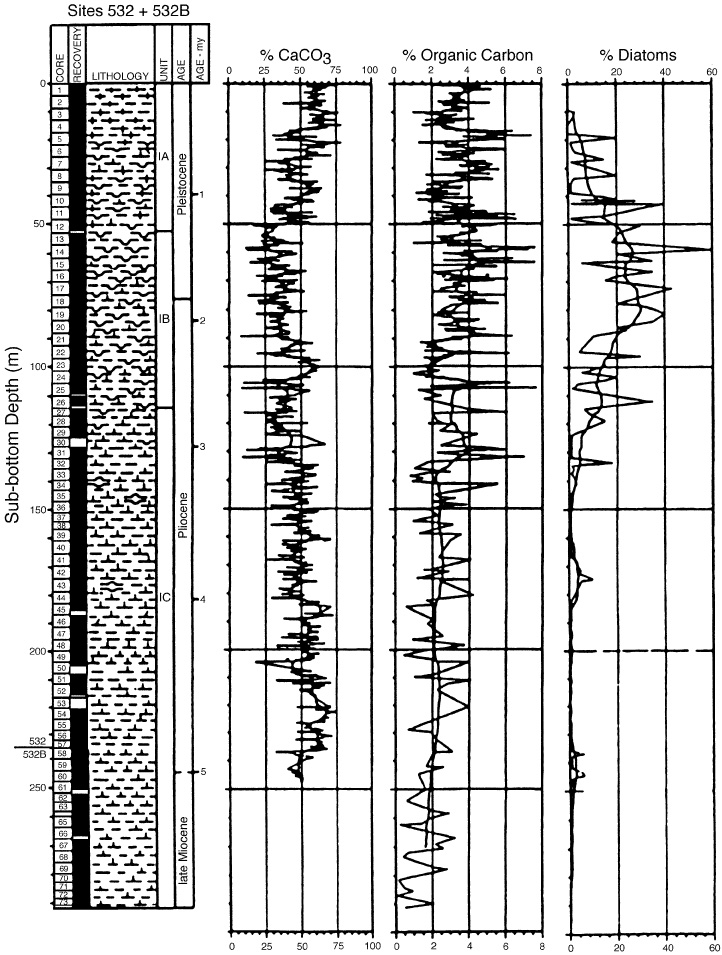

Figure 16. Late Neogene patterns of biogenous sedimentation on the Walvis Ridge in the Benguela Current system. Note the overall trend in diatom abundance, showing the Matuyama Opal Maximum. From Dean and Gardner (1985) and Hay and Brock (1992).
