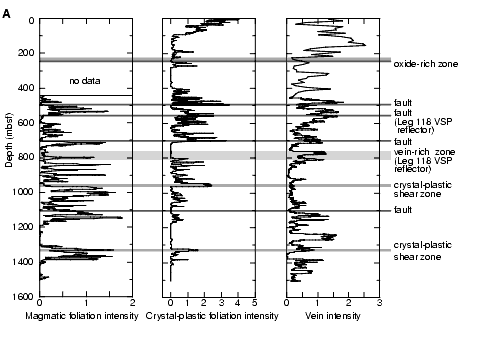

Figure F18. A. Late magmatic and crystal-plastic foliation intensities plotted with total vein intensities downhole for Hole 735B. No data on magmatic foliation exist for the upper 500 m of Hole 735B. (Continued on next page.)
