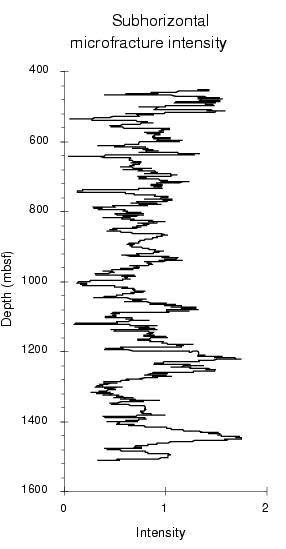

Figure F100. Variation in subhorizontal microfracture intensity with depth. The intensity scale, based on microfracture density, is outlined in "Structural Geology," in the "Explanatory Notes" chapter.
