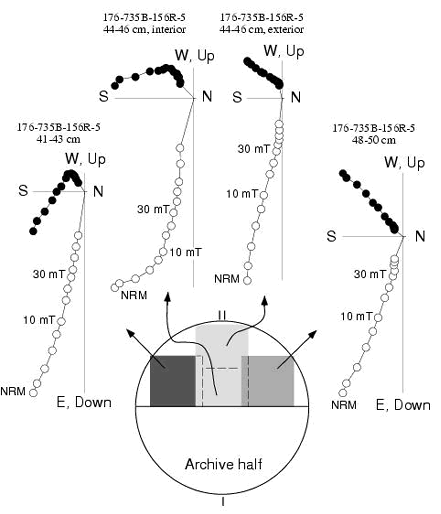

Figure F116. Vector end-point diagrams for minicore samples from Section 176-735B-156R-5 (Piece 2A), illustrating apparent radial orientation of the low-stability magnetization component. The sample from 41-43 cm was slightly offset to left of the center line in the working half (i.e., toward azimuth of 270º in core reference frame). The sample from 48-50 cm was slightly offset toward azimuth of 90º. The sample from 44-46 cm was taken from the center of the working half and subsequently subdivided into an interior and an exterior sample. Solid circles are the projections of the remanent magnetization onto the horizontal plane, and open circles are the projection onto the vertical plane.
