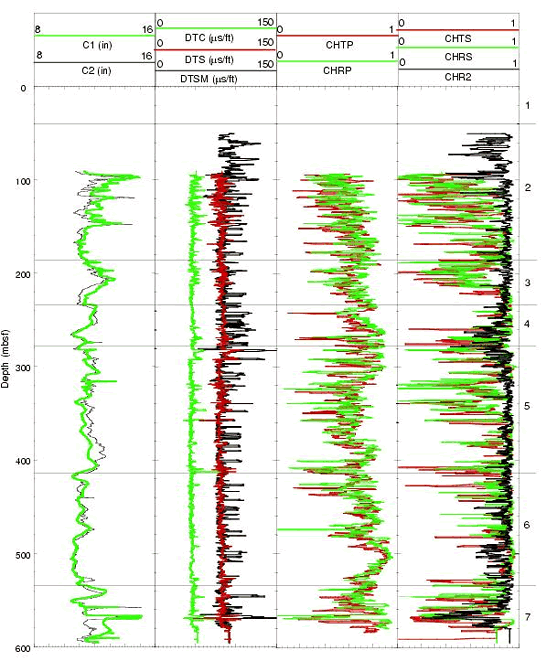

Figure F131. Downhole logs for Hole 735B showing the FMS calipers (C1 and C2) in Track 1; travel-time for compressional (DTC) and shear waves (DTS) generated with the DSI monopole source and shear-wave traveltimes produced with the DSI dipole source in Track 2; transmitter and receiver coherence for the high-frequency compressional wave monopole source (CHTP and CHRP) in Track 3; and transmitter and receiver coherence produced by the high-frequency shear-wave monopole source (CHTS and CHRS) as well as coherence from the low-frequency shear-wave dipole source (CHR2) in Track 4. The numbers on the right side of the figure are the logging units that correspond to the lithostratigraphic units identified in the Hole 735B cores.
