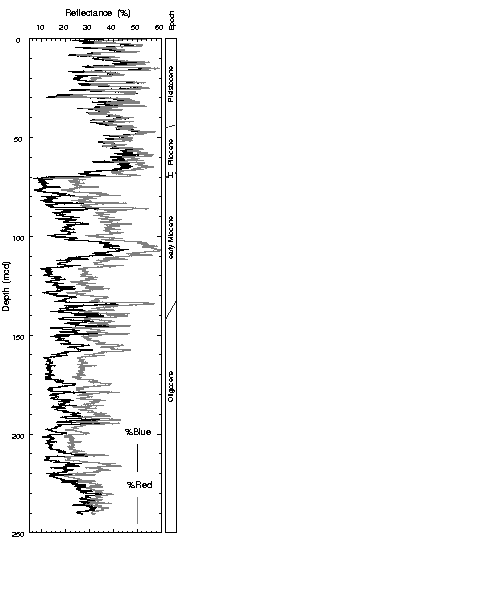

Figure F30. Site 1090 blue (450-550 nm) and red (650-750 nm) reflectance. Sediments above the hiatus (H) exhibit a smaller red/blue contrast than those below as a result of the significant red-clay component of the sediment at this depth.
