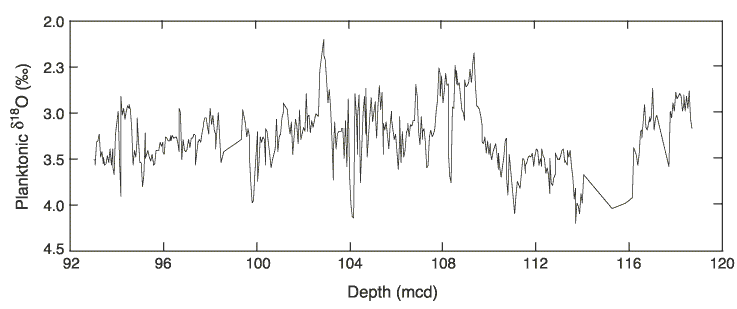

Figure F5.
The Site 1091 planktonic
18
O record plotted vs. depth. Oxygen isotope data were obtained from the planktonic foraminifer
N. Pachyderma
(sinistral).
18O record plotted vs. depth. Oxygen isotope data were obtained from the planktonic foraminifer N. Pachyderma (sinistral).
