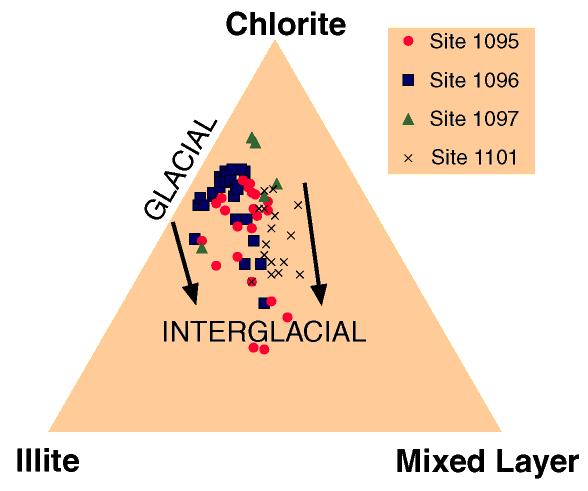

Figure F24. Relative abundances of chlorite, illite, and mixed-layer clays in sediments from the continental shelf (Site 1097) and rise (Sites 1095, 1096, and 1101) analyzed on Leg 178. Axes are in arbitrary units based on diffraction intensities and do not imply absolute concentrations.
