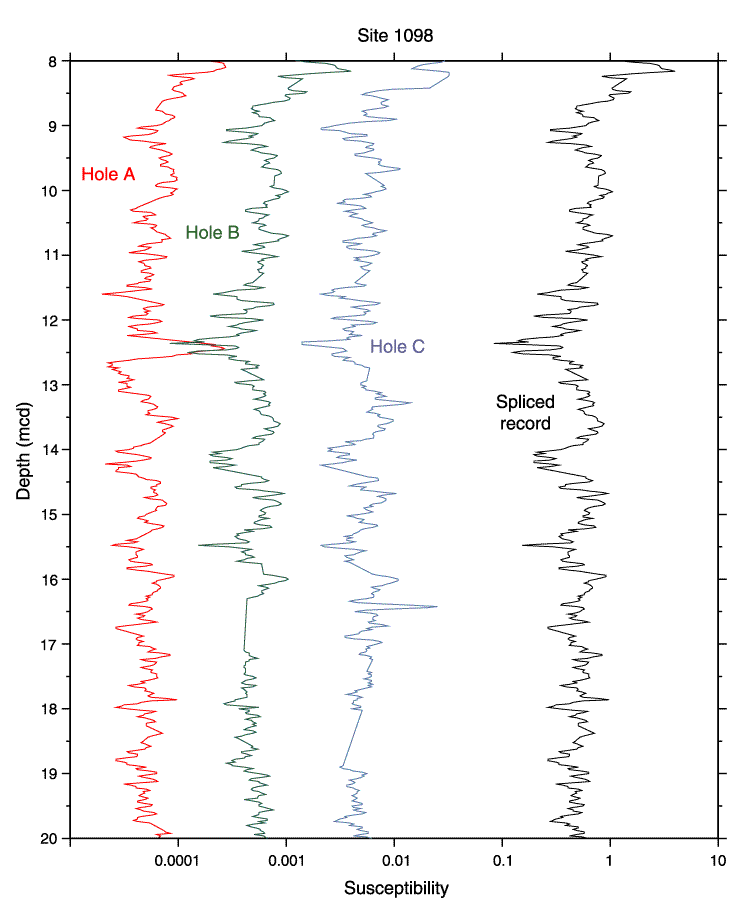

Figure F4. Susceptibility record on the mcd scale, 8-20 mcd, Site 1098. All data were converted from raw meter units to volume SI units by multiplying by 0.7 × 10^-5. For viewing purposes, the Hole 1098B data were multiplied by 10, the Hole 1098C data by 100, and the spliced record by 10,000.
