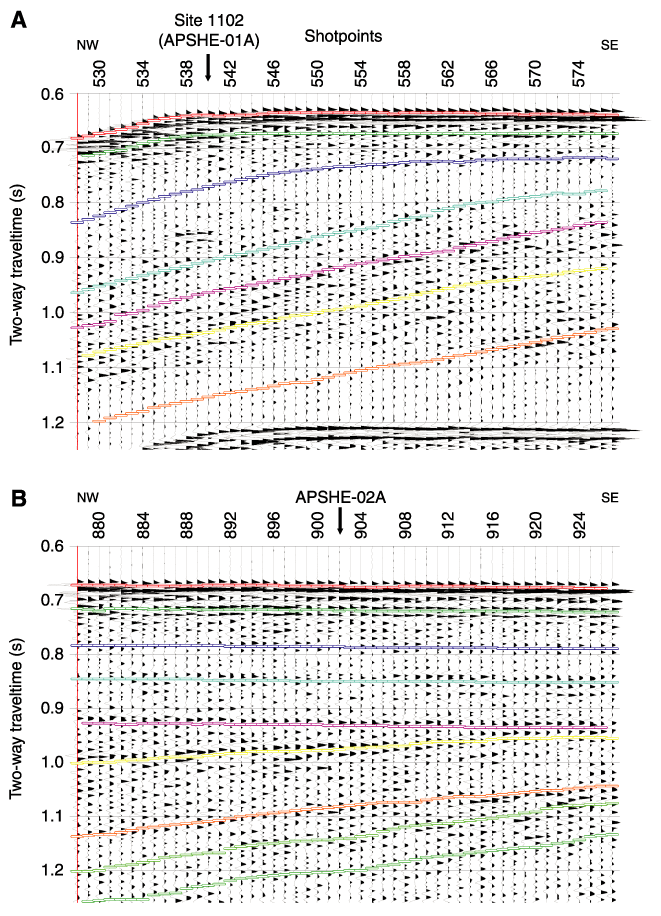

Figure F5. Picked reflections on common-offset gathers. In all cases, we display trace 10, corresponding to 329.5-m offset. See text for comments. A. Proposed Site APSHE-01A, drilled as Site 1102. B. Proposed Site APSHE-02A. (Continued on next two pages.)
