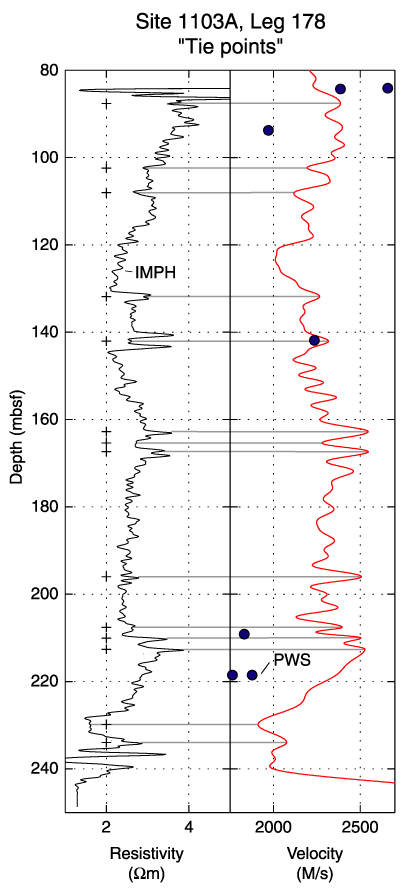

Figure F10. The reduced and filtered logging velocity data are synchronized with the depth-shifted resistivity data (integrated resistivity [IMPH] and self focusing resistivity [SFLU] processed by the Borehole Research Group at Lamont-Doherty Earth Observatory [LDEO-BRG]). Absolute shifts are given in Table T3.
