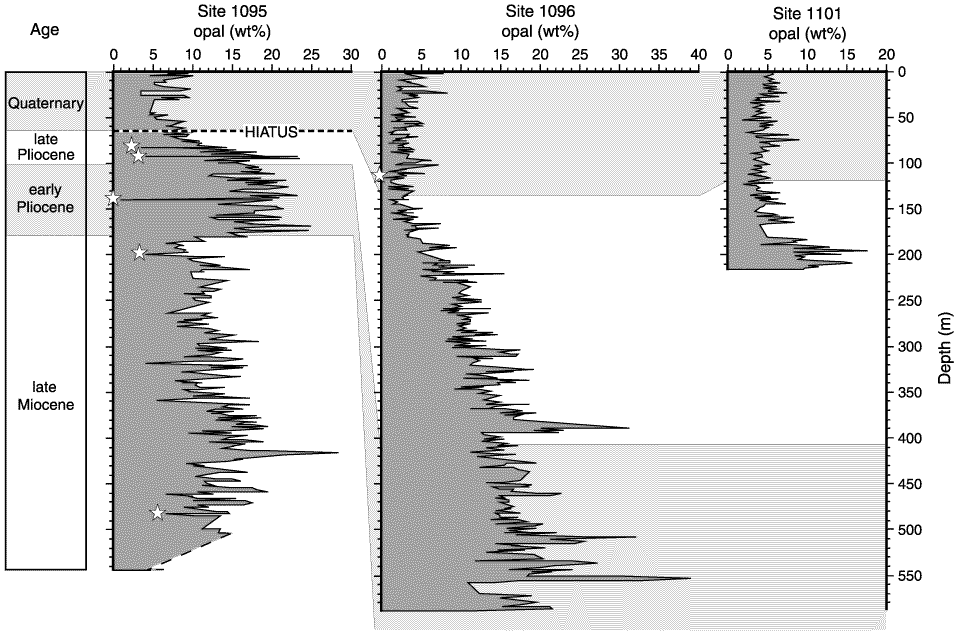

Figure F2. Biogenic opal contents in sediments recovered at Sites 1095, 1096, and 1101. Opal contents are plotted vs. meters composite depth for Sites 1095 and 1096 and vs. recovery corrected meters below seafloor for Site 1101. Ages were taken from Barker, Camerlenghi, Acton, et al. (1999). Stars within the opal curves at Sites 1095 and 1096 mark turbidites.
